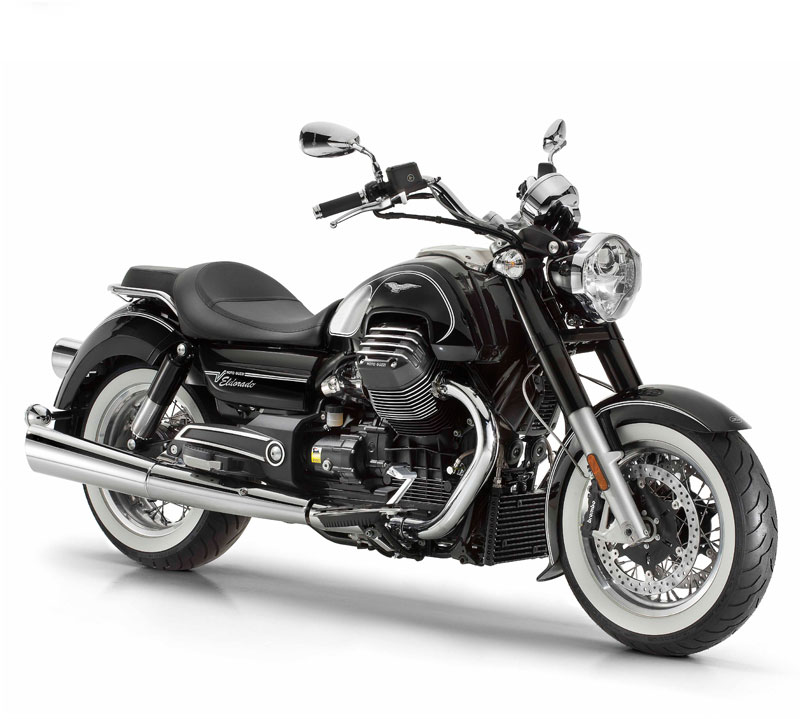

Moto Guzzi California 1400 Eldorado - Technical Specifications
Engine
|
|
90° V-twin engine, 4-stroke, 4 valves, dual ignition, Ride by Wire with 3 engine maps, 3 level adjustable traction control, Cruise Control as standard equipment | |
Cooling
|
|
through air and oil and an independent cooling pump. Oil radiator with thermostat controlled fan. | |
Engine capacity
|
|
1380 cm³ | |
Maximum power
|
|
71 kW (96 HP) at 6500 min-1 | |
Maximum torque
|
|
120 Nm (12.3 kgm) 2750 min-1 | |
Exhaust system
|
|
stainless steel, 2-in-2 type, three-way catalytic converter with double lambda probe | |
Gearbox
|
|
6 speeds with final overdrive | |
Final Drive
|
|
double cardan joint and fixed bevel gear seat, drive ratio 10/36 = 1: 3.6 | |
Fuel Supply / Ignition
|
|
phased electronic Multipoint sequential injection, Magneti Marelli IAW7SM; "ride by wire" Ø 52 mm throttle body, IWP 243 Magneti Marelli injectors, double oxygen sensor, integrated management of 3 engine mappings, traction control, cruise control | |
Front suspension
|
|
standard swingarm, Ø 46 mm, with radial calliper mounting bracket and telescopes on the stanchions | |
Rear suspension
|
|
swingarm with double shock absorber with adjustable spring preload | |
Front brake
|
|
dual 320 mm stainless steel floating discs, Brembo radial callipers with 4 horizontally opposed pistons: ABS as standard equipment | |
Rear brake
|
|
282 mm stainless steel fixed disc, Brembo floating calliper with 2 parallel pistons: ABS as standard equipment | |
Tyres
|
|
16” polished aluminium, spoked with tubeless system, 130/90 (front) 16” polished aluminium, spoked with tubeless system, 180/65 (rear) | |
Saddle height
|
|
740 mm (720 mm opt.) | |
Fuel tank
|
|
20,5 litres (5 litres reserve) | |
Kerb weight
|
|
320 Kg | |
Chassis
|
|
steel tubing, closed double cradle with elastic-kinematic engine mounting system to isolate vibrations. | |
Wheelbase
|
|
1.685 mm | custom: € 18.800,00 |
Designing the heir to the most famous Moto Guzzi in the world meant taking on a great technological and economic challenge in order to replicate, like in 1971, the new reference point for the category. An impressive bike, exclusive, capable of enhancing the elements of nobility of a brand which is the symbol of 'made in Italy'.
Starting from the stylistic intuition of an innovative but recognisable design and coherent with the heritage of seven California generations manufactured until today, the main distinctive Moto Guzzi traits were redesigned with the most advanced technologies of the top European motorcycle group, achieving a series of results such as:
- The largest twin cylinder engine ever made in Europe, able to produce an explosive torque of 120 Nm at just 2750 rpm.
- The first custom in the world equipped with MGCT traction and multimap Ride by Wire technology, with the possibility of selecting three different power output curves: Turismo, Veloce and Pioggia.
- The first custom in the world with a headlight assembly equipped with LED DRL daylight running lights, like the system used on late model cars.
- A brand new double cradle frame equipped with an elastic support system capable of completely eliminating vibration transfer.
- A new cardan final drive, at the top of the category for smooth and quiet operation.
